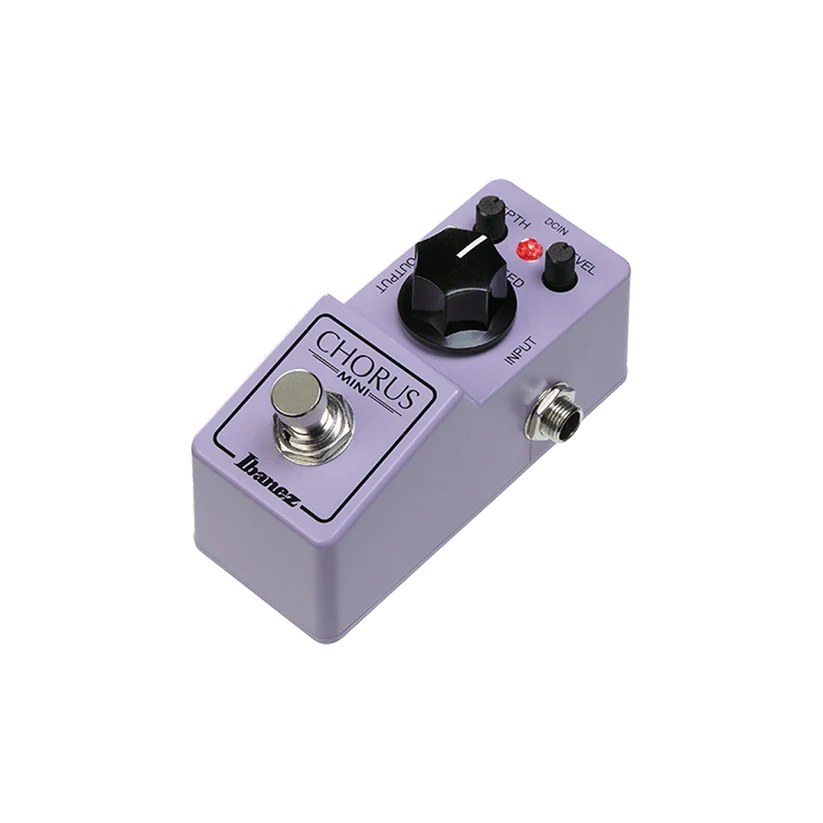

Ibanez CSMINI Mini Analog Chorus Pedal

Ibanez CSMINI Mini Analog Chorus Pedal

The Ibanez CSMINI is a compact, true analog chorus pedal built around a Bucket Brigade Device (BBD) circuit — the same technology that defined the lush, warm chorus tones of the 1970s and 80s. Housed in Ibanez's space-saving mini enclosure, the CSMINI delivers studio-quality analog modulation in a pedalboard-friendly footprint, without the digital artifacts or sterility associated with DSP-based chorus effects.

Analog BBD Circuit — What It Means for Your Tone

Unlike digital chorus pedals that simulate modulation through DSP processing, the CSMINI uses a genuine analog BBD (Bucket Brigade Device) chip to delay and modulate the signal. In a BBD circuit, the audio signal is passed through a series of capacitor "buckets" in a chain, with each stage introducing a small, clock-controlled delay. When this delayed signal is blended back with the dry signal and the delay time is modulated by an LFO (Low Frequency Oscillator), the result is the characteristic pitch-shifting, swirling chorus effect — warm, organic, and dynamically responsive in a way that digital emulations rarely replicate.

Key Features

• True Analog BBD Circuit: Genuine bucket brigade signal path for warm, organic chorus tones with natural harmonic complexity.
• Speed Control: Adjusts the rate of the LFO modulating the BBD delay time — from slow, subtle shimmer to fast, vibrato-like warble.
• Depth Control: Sets the intensity of the modulation — dial in gentle, transparent thickening or deep, pitch-shifting chorus.
• Mini Form Factor: Compact enclosure takes up minimal pedalboard real estate without sacrificing build quality or tone.
• True Bypass / Buffered Switching: Preserves signal integrity when the effect is disengaged.
• Standard 9V DC Power: Compatible with any standard pedalboard power supply (centre-negative, 9V DC).

Technical Specifications

• Model: CSMINI
• Brand: Ibanez
• Effect Type: Analog Chorus
• Circuit Type: BBD (Bucket Brigade Device)
• Controls: Speed, Depth
• Input: 1 × 6.35mm (1/4") Mono Jack
• Output: 1 × 6.35mm (1/4") Mono Jack
• Power: 9V DC, Centre-Negative (adapter not included)
• Current Draw: Approx. 35mA
• Enclosure: Mini Metal

Tone Applications

The CSMINI excels across a wide range of playing contexts:

• Clean Guitar: Add depth and dimension to clean Stratocaster or Telecaster tones — classic 80s chorus textures for funk, pop, and R&B.
• Arpeggios & Fingerpicking: Slow Speed + moderate Depth creates a lush, shimmering quality ideal for ambient and post-rock styles.
• Lead Guitar: Subtle chorus thickens single-note lines without muddying the attack or definition.
• Bass Guitar: Works equally well on bass for subtle low-end widening and movement.
• Studio Recording: The analog signal path adds natural warmth and harmonic richness that sits beautifully in a mix.

Why Choose Analog Chorus Over Digital?

Digital chorus pedals offer precision and repeatability, but the BBD analog circuit in the CSMINI introduces subtle, natural imperfections in the modulation — slight variations in timing and pitch that make the effect feel alive and musical rather than mechanical. For players who prioritise feel and organic tone over clinical accuracy, analog BBD chorus remains the gold standard. The CSMINI makes this technology accessible at an entry-level price point in a compact, road-ready format.
